Description

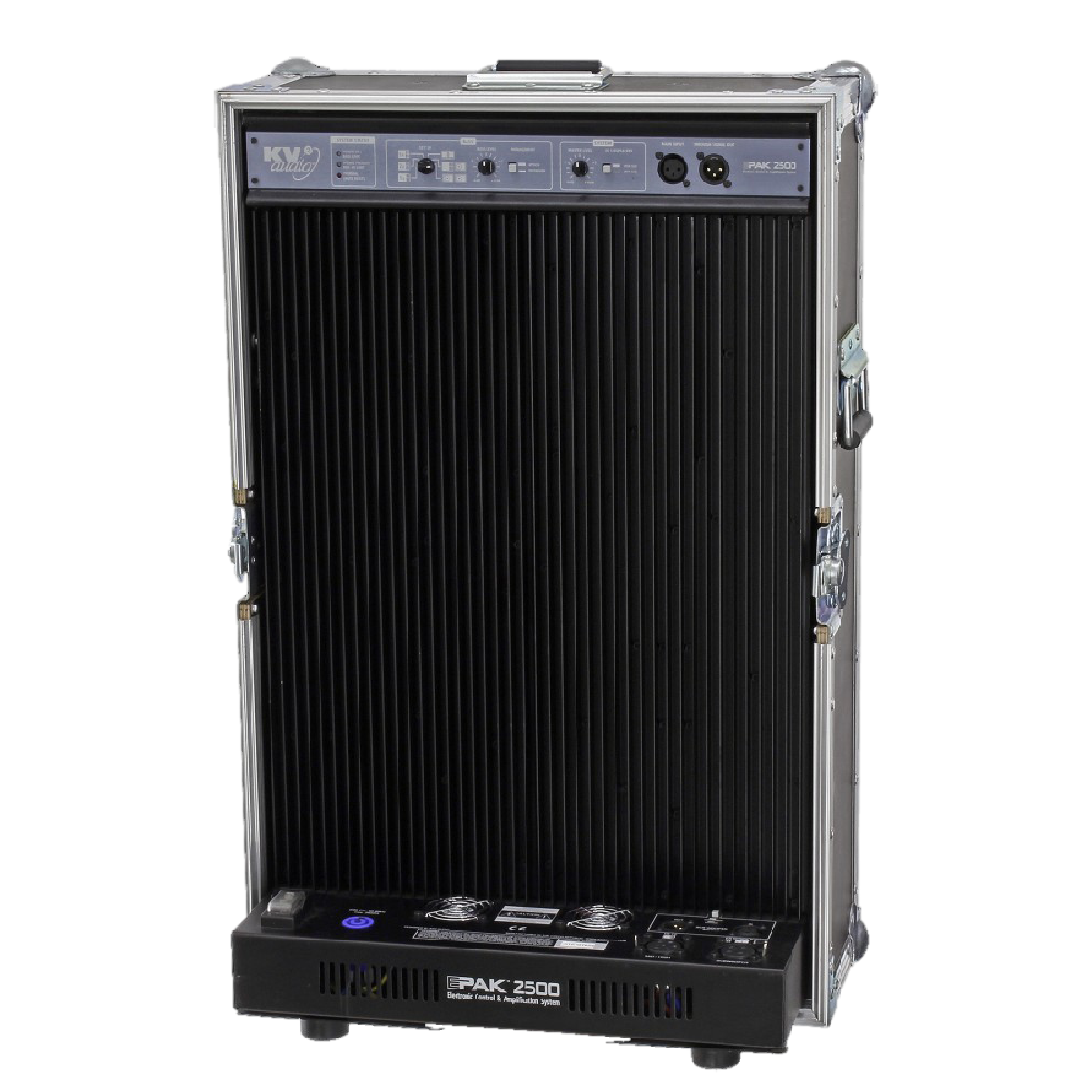

The EPAK2500 is a four-way, active control and amplification unit specifically designed for the ES Series modular loudspeaker system. It not only houses all signal processing and four individual amplifiers but also controls the allocation of power depending on the number of bass modules employed. The EPAK2500 is enclosed in a road-rugged case with side handles and a built in cable storage compartment. Easily transported on a trolley this unique amplification system has its electronics mounted on an independent suspension system that isolates it from the shocks and impacts typically encountered on the road. A large aluminium heat sink provides passive cooling along with two demand-sensitive fans for added reliability.
High Frequency Amplifier Specification
| Type | Class AB, Push-Pull, Low IM Mosfet design with transformer balanced output |
| Rated Continuous Power | 100W |
| Distortion | <0.05% |
| Operating Bandwidth | 2.5kHz to 28kHz |
Mid Frequency Amplifier Specification
| Type | Class AB, Push-Pull, Low IM Mosfet design with transformer balanced output |
| Rated Continuous Power | 200W |
| Distortion | <0.05% |
| Operating Bandwidth | 500Hz to 2.5kHz |
Mid Bass Frequency Amplifier Specification
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 600W |
| Distortion | <0.05% |
| Operating Bandwidth | 130Hz to 500Hz |
Low Frequency Amplifier Specification
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 1600W |
| Distortion | <0.05% |
| Operating Bandwidth | 20Hz to 130Hz |
Speaker Output
| Speaker Output | AP6 (Mid-Hi), AP4 (Sub) |
Power Requirements
| Power Connector | Neutrik PowerCon® |
| Operating Voltage Range | 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz |
| Recommended Amperage | 20A 115V | 10A 230V | 10A 250V |
Physical Dimensions
| Height | 719 mm (28.30″) |
| Width | 478 mm (18.82″) |
| Depth | 305 mm (12″) |
| Weight | 32 kg (70.4lbs) |
